CK-N30100T Carbon Steel Overrunning Clutch For Bucket Elevator

CK-N30100T is a specific type of sprag overrunning clutch. This model without bearing supported and oil seal. The clutch with a torque arm, suitable to apply at low speed device.

Secured to a fixed part of the machine and passing through the slot in the torque arm while assembly. Provides the rotating stop. Radial clearance on the bolt should be equal to 1% of the solt with. Prestress is forbidden to apply on the torque arm and the bearing.

CK-N30100T mainly used as a backstop or indexing clutch for packaging and printing machinery. It could bring high torque load with a limited space requirement.

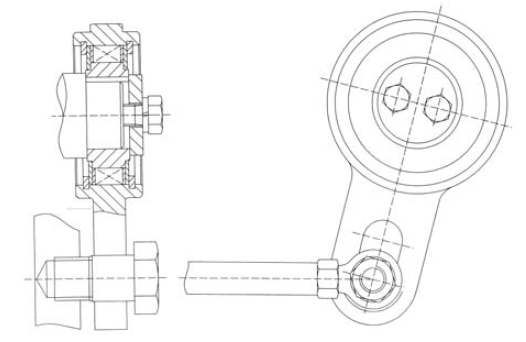

Mounting Example

Drawing

Xianyang CHAOYUE Clutch Co., Ltd. established in 1999. is a 22 years' professional manufacturer engaged in the research, development, production, sale and service of one way overrunning clutches, backstops, locking assemblies, couplings, electromagnetic clutch and brake, clamping elements etcetera. We dedicated to strict quality control and thoughtful customer service, our experiences staff members always available to discuss your requirements and ensure full customer satisfaction.

We have certificated by ISO9001:2015, TüV. By our high quality products, we aim to provide a high-end solution for our partner. Whether selecting a curent product from our catalogue or seeking engineering assistance for your application, please feel free to talk to us about your requirements.
