Outer Dia 120mm Length 88mm Shaft Clamping Elements For Connection

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z18
Price :	USD 22.00 - 450.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

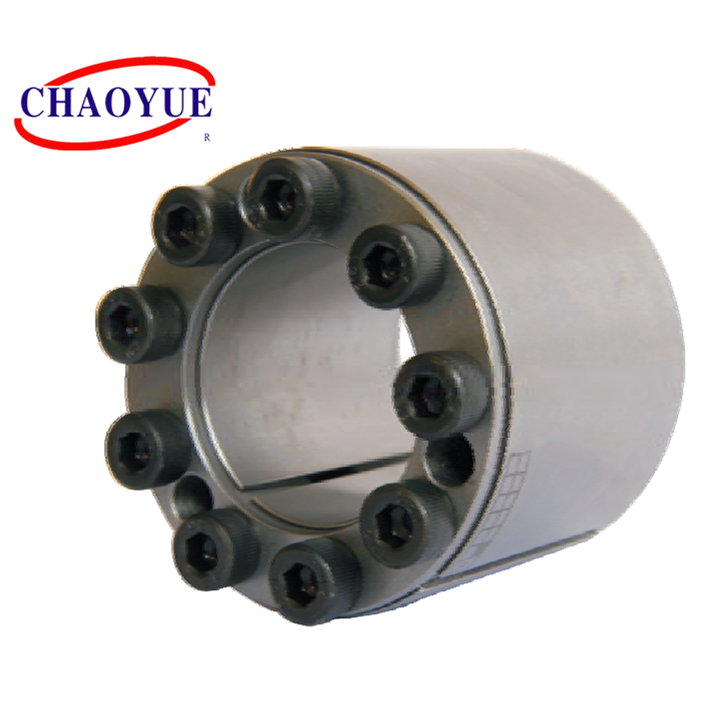

Outer Dia 120mm Length 88mm Shaft Clamping Elements For Connection

Z18 Industry Machinery Power Lock Connection Part

Mounting Example

Fundamental Dimension [mm]				Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	I	L	d₁	n	Axial Force [kN]	Torque [kN·m]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
45	75	64	72	M8	9	174	3.9	185	110	41	1.5
48	80	64	72	M8	9	174	4.15	170	105	41	1.7
50	80	64	72	M8	9	174	4.3	165	105	41	1.6
55	85	64	72	M8	9	174	4.8	150	95	41	1.7
60	90	64	72	M8	11	213	6.4	170	110	41	1.8
65	95	64	72	M8	11	213	6.9	155	105	41	2
70	110	78	88	M10	11	338	11.8	185	115	83	3.6
75	115	78	88	M10	11	338	12.7	170	110	83	3.8
80	120	78	88	M10	12	369	14.7	175	115	83	4
85	125	78	88	M10	12	369	15.7	165	110	83	4.3
90	130	78	88	M10	13	400	18	170	115	83	4.5
95	135	78	88	M10	13	400	19	160	110	83	4.7
100	145	100	112	M12	12	538	26.9	160	110	145	7.2
110	155	100	112	M12	13	583	32	155	110	145	7.7
120	165	100	112	M12	15	673	40.3	165	120	145	8.3
130	180	116	130	M14	13	800	52	155	115	230	11.7
140	190	116	130	M14	15	923	64.6	170	125	230	12.5
150	200	116	130	M14	16	985	73.8	165	125	230	13.2
160	210	116	130	M14	17	1045	83.7	165	125	230	14
170	225	146	162	M16	15	1283	109	150	115	355	20.6
180	235	146	162	M16	16	1369	123.2	150	115	355	21.6
190	250	146	162	M16	17	1454	138	150	115	355	25
200	260	146	162	M16	17	1454	145.4	145	110	355	26.2
220	285	146	162	M16	20	1710	188	155	120	355	31.1
240	305	146	162	M16	22	1880	225	155	120	355	33.6
260	325	146	162	M16	22	1880	244	145	115	355	36.1
280	355	177	197	M20	20	2670	373	155	120	690	54.9
300	375	177	197	M20	22	2930	440	155	125	690	58.3
320	405	177	197	M20	22	2930	470	145	115	690	71
