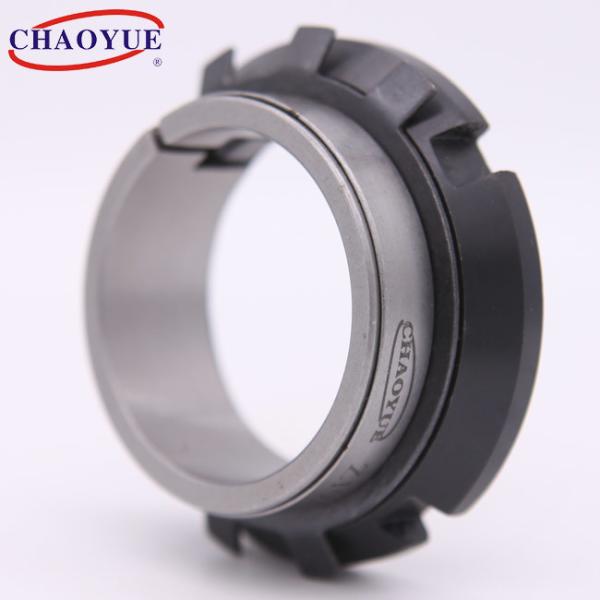

Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z19A
Price :	USD 5.00 - 20.00 / pc
Payment Terms :	T/T
Supply Ability :	1000 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock

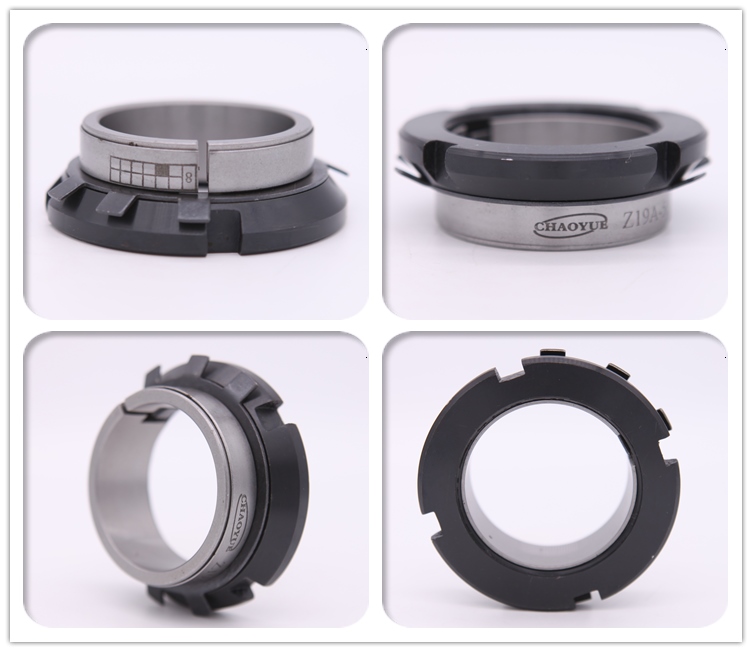

Z19A Keyless Shaft Clamping Element Locking Bushing

Mounting Example

Fundamental Dimension [mm]					Bolt	Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	E	H	B	d₁	Axial Force [kN]	Torque [N·m]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
14	25	32	16.5	6.5	M20 x 1	5.1	38	200	110	95	0.05
15	25	32	16.5	6.5	M20 x 1	5.5	41	185	110	95	0.04
16	25	32	16.5	6.5	M20 x 1	5.45	43	174	110	95	0.04
17	26	32	16.5	6.5	M20 x 1	5.5	47	164	107	95	0.04
18	26	32	16.5	6.5	M20 x 1	5.4	49	155	107	95	0.04
18	30	38	16.5	6.5	M25 x 1.5	6.6	58	185	112	160	0.06
19	30	38	18	6.5	M25 x 1.5	6.6	62	176	112	160	0.06
20	30	38	18	6.5	M25 x 1.5	6.6	66	167	111	160	0.06
22	32	38	18	6.5	M25 x 1.5	6.6	73	152	105	160	0.06
24	35	45	18	6.5	M30 x 1.5	8.75	105	185	127	220	0.08
25	35	45	18	6.5	M30 x 1.5	8.8	110	178	127	220	0.07
28	36	45	18	6.5	M32 x 1.5	8.55	120	159	124	220	0.06
28	40	52	18	6.5	M35 x 1.5	10.6	149	188	141	340	0.09
30	40	52	19.5	7	M35 x 1.5	10.6	160	164	123	340	0.09
32	42	52	19.5	7	M36 x 1.5	10.6	170	154	117	340	0.09
35	45	58	21.5	8	M40 x 1.5	13.1	230	153	120	480	0.11
36	45	58	21.5	8	M40 x 1.5	13.3	240	149	120	480	0.1
38	48	58	21..5	8	M42 x 1.5	13.1	250	141	112	480	0.12
38	50	58	21.5	8	M42 x 1.5	13.1	250	141	112	480	0.14
40	50	65	24.5	10	M45 x 1.5	15.5	310	124	93	680	0.14
40	52	65	24.5	10	M45 x 1.5	15.5	310	120	93	680	0.17
42	55	65	25.5	10	M48 x 1.5	15.2	320	114	87	680	0.2
45	55	72	25.5	10	M50 x 1.5	17.7	400	122	96	870	0.16
45	57	72	25.5	10	M50 x 1.5	17.7	400	122	96	870	0.2
48	60	75	25.5	10	M55 x 2	20.8	500	135	105	970	0.21
50	60	75	25.5	10	M55 x 2	20.8	520	130	105	970	0.18
50	62	75	25.5	10	M55 x 2	20.8	520	130	105	970	0.22
55	65	80	27.5	12	M60 x 2	22	610	103	84	1100	0.21
55	68	80	27.5	12	M60 x 2	22	610	103	84	1100	0.28
56	68	80	27.5	12	M60 x 2	22	620	101	82	1100	0.26
60	70	85	30	12	M65 x 2	26.6	800	113	93	1300	0.24
60	73	85	30.5	12	M65 x 2	26.6	800	113	93	1300	0.33
63	79	92	30.5	14	M70 x 2	31.1	980	107	86	1600	0.43
65	79	92	30.5	14	M70 x 2	31	1010	104	86	1600	0.38
70	84	98	31.5	14	M75 x 2	35.4	1240	110	92	2000	0.42
