160mm Inner Diameter Sleeve Expansion Joint

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z20
Price :	USD 10.00 - 105.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

160mm Inner Diameter Sleeve Expansion Joint

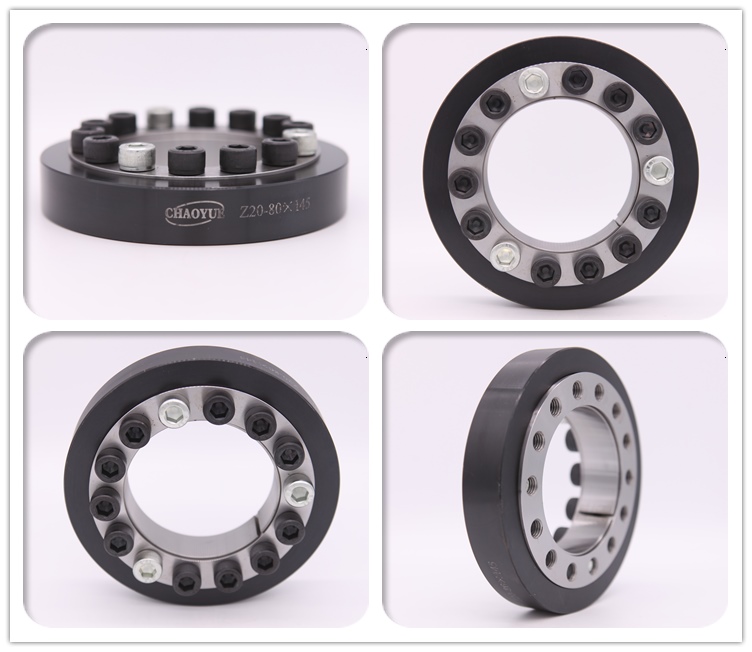

Z20 Mechanical Connection Shaft Clamping Element Locking Device

Mounting Example

Fundamental Dimension [mm]						Bolt		Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	dw	D	L	L₁	L₂	d₁	n	Torque [kN·m]	Axial Force [kN]	Torque of Tighten Bolt [N.m]	Weight [kg]
25	18	60	26	20	17	M6	9	0.19	21	17	0.37
25	20	60	26	20	17	M6	9	0.255	25	17	0.37
30	20	65	26	20	17	M6	9	0.205	20	17	0.42
30	22	65	26	20	17	M6	9	0.27	24	17	0.42
30	24	65	26	20	17	M6	9	0.34	28	17	0.42
35	25	72	26	20	17	M6	12	0.365	29	17	0.48
35	28	72	26	20	17	M6	12	0.49	35	17	0.48
35	30	72	26	20	17	M6	12	0.585	39	17	0.48
40	30	78	26	20	17	M6	15	0.555	37	17	0.54
40	32	78	26	20	17	M6	15	0.59	37	17	0.54
40	34	78	26	20	17	M6	15	0.71	42	17	0.54
40	35	78	26	20	17	M6	15	0.77	44	17	0.54
45	35	92	32	24	20	M8	12	0.96	55	41	0.92
45	36	92	32	24	20	M8	12	1.03	57	41	0.92
45	38	92	32	24	20	M8	12	1.2	63	41	0.92
50	38	98	32	24	20	M8	12	1.01	53	41	1
50	40	98	32	24	20	M8	12	1.16	58	41	1
50	42	98	32	24	20	M8	12	1.32	63	41	1
55	42	105	32	24	20	M8	14	1.33	63	41	1.1
55	45	105	32	24	20	M8	14	1.59	70	41	1.1
55	48	105	32	24	20	M8	14	1.88	78	41	1.1
60	48	110	32	24	20	M8	14	1.6	67	41	1.2
60	50	110	32	24	20	M8	14	1.78	71	41	1.2
60	52	110	32	24	20	M8	14	1.89	73	41	1.2
70	55	138	38	28	24	M10	14	2.93	106	83	2.3
70	58	138	38	28	24	M10	14	3.37	116	83	2.3
70	60	138	38	28	24	M10	14	3.69	123	83	2.3
80	62	145	38	28	24	M10	14	3.14	101	83	2.4
80	65	145	38	28	24	M10	14	3.57	110	83	2.4
80	68	145	38	28	24	M10	14	4.02	118	83	2.4
80	70	145	38	28	24	M10	14	4.35	124	83	2.4
90	70	160	38	28	24	M10	16	4.09	117	83	2.8
90	75	160	38	28	24	M10	16	4.89	130	83	2.8
90	78	160	38	28	24	M10	16	5.42	139	83	2.8
100	78	180	45	33	26	M12	14	5.98	153	145	3.8
100	80	180	45	33	26	M12	14	6.37	159	145	3.8
100	82	180	45	33	26	M12	14	6.49	158	145	3.8
100	85	180	45	33	26	M12	14	7.16	168	145	3.8
110	85	190	45	33	26	M12	14	6.18	145	145	4.1
110	88	190	45	33	26	M12	14	6.8	154	145	4.1
110	90	190	45	33	26	M12	14	7.24	160	145	4.1
110	95	190	45	33	26	M12	14	8.38	176	145	4.1
120	95	205	45	33	26	M12	16	8.25	173	145	4.7
120	100	205	45	33	26	M12	16	9.45	189	145	4.7
120	105	205	45	33	26	M12	16	10.74	204	145	4.7
140	110	230	50	38	34	M12	22	12.86	233	145	7.4
140	115	230	50	38	34	M12	22	14.44	251	145	7.4
140	120	230	50	38	34	M12	22	16.14	269	145	7.4
160	125	260	50	38	34	M12	26	17.13	274	145	9.2
160	130	260	50	38	34	M12	26	18.99	292	145	9.2
160	135	260	50	38	34	M12	26	20.94	310	145	9.2
160	140	260	50	38	34	M12	26	23	328	145	9.2
