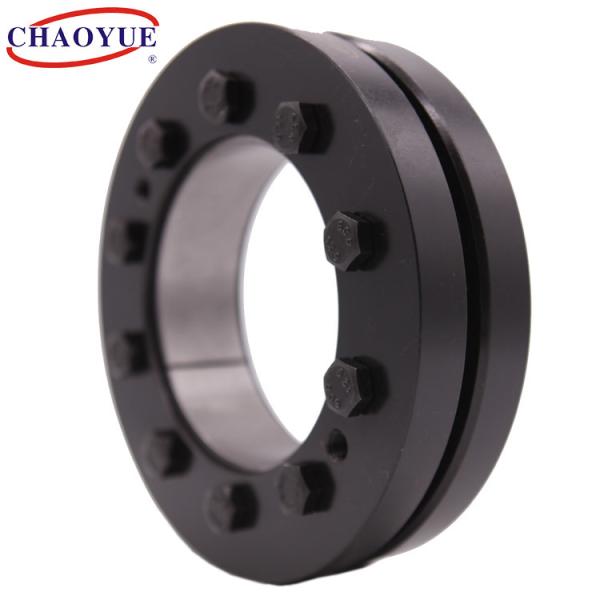

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z7B
Price :	USD 10.00 - 60.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings

Z7B Shaft locking device bore 24mm to 80mm power lock

Mounting Example

Fundamental Dimension [mm]						Bolt		Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	d_w	L	H	e	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Torque of Tighten Bolt [N.m]	Weight [kg]
24	50	19	14	18	2	M5	6	17	0.17	5	0.2
24	50	20	14	18	2	M5	6	21	0.21	5	0.2
24	50	21	14	18	2	M5	6	23	0.25	5	0.2
30	60	24	16	20	2	M5	7	25	0.3	5	0.3
30	60	25	16	20	2	M5	7	27	0.34	5	0.3
30	60	26	16	20	2	M5	7	29	0.38	5	0.3
36	72	28	18	22	2	M6	5	31	0.44	12	0.4
36	72	30	18	22	2	M6	5	38	0.57	12	0.4
36	72	31	18	22	2	M6	5	40	0.63	12	0.4
44	80	34	20	24	2	M6	7	41	0.71	12	0.6
44	80	35	20	24	2	M6	7	44	0.78	12	0.6
44	80	36	20	24	2	M6	7	47	0.86	12	0.6
50	90	38	22	26	2	M6	8	49	0.94	12	0.8
50	90	40	22	26	2	M6	8	58	1.16	12	0.8
50	90	42	22	26	2	M6	8	65	1.38	12	0.8
55	100	40	23	29	3	M6	8	55	1.16	12	1.1
55	100	45	23	29	3	M6	8	67	1.52	12	1.1
55	100	48	23	29	3	M6	8	78	1.88	12	1.1
62	110	48	23	29	3	M6	10	73	1.75	12	1.3
62	110	50	23	29	3	M6	10	80	2	12	1.3
62	110	52	23	29	3	M6	10	86	2.25	12	1.3
68	115	50	23	29	3	M6	10	74	1.85	12	1.4
68	115	55	23	29	3	M6	10	91	2.5	12	1.4
68	115	60	23	29	3	M6	10	105	3.15	12	1.4
75	138	55	25	31	3	M8	7	87	2.4	29	1.2
75	138	60	25	31	3	M8	7	106	3.2	29	1.2
75	138	65	25	31	3	M8	7	121	3.95	29	1.2
80	145	60	25	31	3	M8	7	106	3.2	29	1.9
80	145	65	25	31	3	M8	7	120	3.9	29	1.9
80	145	70	25	31	3	M8	7	131	4.6	29	1.9
90	155	65	30	38	4	M8	10	146	4.75	29	3.3
90	155	70	30	38	4	M8	10	171	6	29	3.3
90	155	75	30	38	4	M8	10	193	7.25	29	3.3
100	170	70	34	43	4.5	M8	12	171	6	29	4.7
100	170	75	34	43	4.5	M8	12	200	7.5	29	4.7
100	170	80	34	43	4.5	M8	12	225	9	29	4.7
110	185	75	39	49	5	M10	9	192	7.29	58	5.9
110	185	80	39	49	5	M10	9	225	9	58	5.9
110	185	85	39	49	5	M10	9	254	10.8	58	5.9
125	215	85	42	53	5.5	M10	12	258	11	58	8.3
125	215	90	42	53	5.5	M10	12	288	13	58	8.3
125	215	95	42	53	5.5	M10	12	315	15	58	8.3
