bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z7B
Price :	USD 1165.00 - 8900.00 / pc
Payment Terms :	T/T
Supply Ability :	100 pcs per month
Delivery Time :	2 - 5 weeks

Add to Cart

Product Details
Company Profile

bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load

Z7B Shaft Hub Inner Size 380mm To 900mm Locking Device

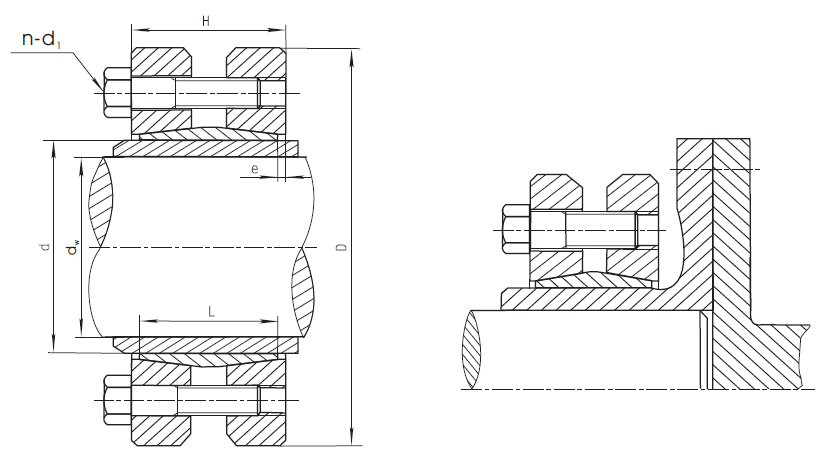

Mounting Example

Fundamental Dimension [mm]						Bolt		Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	d_w	L	H	e	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Torque of Tighten Bolt [N.m]	Weight [kg]
380	645	290	144	163	12	M24	18	4069	590	820	239
380	645	300	144	163	12	M24	18	4267	640	820	239
380	645	310	144	163	12	M24	18	4452	690	820	239
390	660	300	144	163	12	M24	20	4400	660	820	260
390	660	310	144	163	12	M24	20	4580	710	820	260
390	660	320	144	163	12	M24	20	4750	760	820	260
420	690	330	164	184	12	M24	20	4727	780	820	316
420	690	340	164	184	12	M24	20	4940	840	820	316
420	690	350	164	184	12	M24	20	5143	900	820	316
440	750	340	172	192	12	M24	24	5235	890	820	408
440	750	350	172	192	12	M24	24	5486	960	820	408
440	750	360	172	192	12	M24	24	5722	1030	820	408
460	770	360	172	192	12	M24	24	5556	1000	820	420
460	770	370	172	192	12	M24	24	5784	1070	820	420
460	770	380	172	192	12	M24	24	6000	1140	820	420
480	800	380	188	213	15	M24	28	6316	1200	820	505
480	800	390	188	213	15	M24	28	6513	1270	820	505
480	800	400	188	213	15	M24	28	6700	1340	820	505
500	850	400	188	213	15	M24	24	7200	1440	1100	575
500	850	410	188	213	15	M24	24	7415	1520	1100	575
500	850	420	188	213	15	M24	24	7619	1600	1100	575
530	910	430	213	238	15	M27	30	8465	1820	1100	746
530	910	440	213	238	15	M27	30	8818	1940	1100	746
530	910	450	213	238	15	M27	30	9156	2060	1100	746
560	940	450	213	238	15	M27	30	8889	2000	1100	775
560	940	460	213	238	15	M27	30	9261	2130	1100	775
560	940	470	213	238	15	M27	30	9617	2260	1100	775
590	980	470	228	260	18	M27	36	9574	2250	1100	900
590	980	480	228	260	18	M27	36	10000	2400	1100	900
590	980	490	228	260	18	M27	36	10410	2550	1100	900
620	1020	500	254	286	18	M30	30	10800	2700	1640	1080
620	1020	510	254	286	18	M30	30	11220	2860	1640	1080
620	1020	520	254	286	18	M30	30	11620	3020	1640	1080
660	1070	530	260	292	18	M30	30	11700	3100	1640	1190
660	1070	540	260	292	18	M30	30	12150	3280	1640	1190
660	1070	550	260	292	18	M30	30	12580	3460	1640	1190
700	1180	560	260	292	18	M30	36	12320	3450	1640	1515
700	1180	575	260	292	18	M30	36	12870	3700	1640	1515
700	1180	590	260	292	18	M30	36	13390	3950	1640	1515
750	1250	600	278	310	18	M30	40	14670	4400	1640	1785
750	1250	615	278	310	18	M30	40	15280	4700	1640	1785
750	1250	630	278	310	18	M30	40	15870	5000	1640	1785
800	1370	645	296	334	20	M30	45	16740	5400	1640	2390
800	1370	660	296	334	20	M30	45	17420	5750	1640	2390
800	1370	670	296	334	20	M30	45	18070	6100	1640	2390
900	1480	720	332	370	20	M33	40	20000	7200	2200	2930
900	1480	740	332	370	20	M33	40	20950	7750	2200	2930
900	1480	760	332	370	20	M33	40	21840	8300	2200	2930
