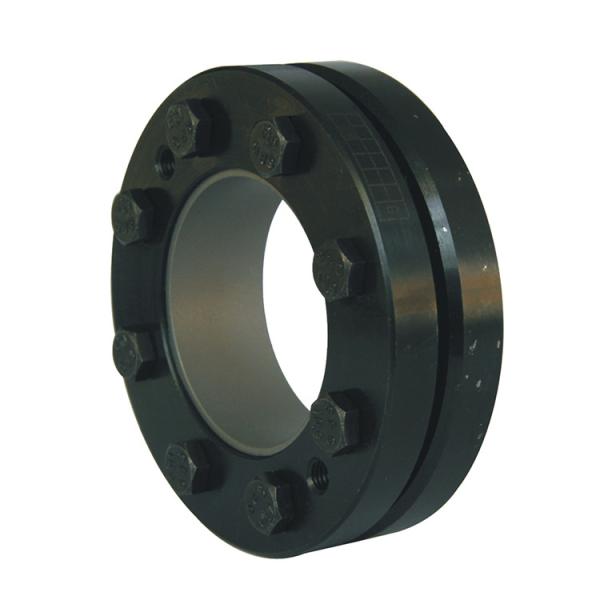

Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z7C
Price :	USD 70.00 - 3060.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	2 - 5 weeks

Add to Cart

Product Details
Company Profile

Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices

Z7C Shaft Power Lock Device Clamping Element Assembly

Mounting Example

Fundamental Dimension [mm]						Bolt		Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	d_w	L	H	e	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Torque of Tighten Bolt [N.m]	Weight [kg]
140	230	95	60	74	7	M12	12	436	20.7	100	13
140	230	100	60	74	7	M12	12	480	24	100	13
140	230	105	60	74	7	M12	12	518	27.2	100	13
155	263	105	66	80	7	M12	15	545	28.6	100	20
155	263	110	66	80	7	M12	15	591	32.5	100	20
155	263	115	66	80	7	M12	15	633	36.4	100	20
165	290	115	72	88	8	M16	10	701	40.3	240	26
165	290	120	72	88	8	M16	10	758	45.5	240	26
165	290	125	72	88	8	M16	10	811	50.7	240	26
175	300	125	72	88	8	M16	10	832	52	240	29
175	300	130	72	88	8	M16	10	880	57.2	240	29
175	300	135	72	88	8	M16	10	924	62.4	240	29
185	330	135	92	112	10	M16	15	1037	70	240	47
185	330	140	92	112	10	M16	15	1100	77	240	47
185	330	145	92	112	10	M16	15	1159	84	240	47
200	350	145	92	112	10	M16	15	1291	93	240	50
200	350	150	92	112	10	M16	15	1353	101.5	240	50
200	350	155	92	112	10	M16	15	1409	109.2	240	50
220	370	160	114	134	10	M16	20	1625	130	240	65
220	370	165	114	134	10	M16	20	1703	140.5	240	65
220	370	170	114	134	10	M16	20	1776	151	240	65
240	405	170	120	144	12	M20	15	1835	156	470	87
240	405	180	120	144	12	M20	15	1994	179.5	470	87
240	405	190	120	144	12	M20	15	2137	203	470	87
260	430	190	136	160	12	M20	16	2242	213	470	100
260	430	200	136	160	12	M20	16	2390	239	470	100
260	430	210	136	160	12	M20	16	2542	265	470	100
280	460	210	148	172	12	M20	20	2686	282	470	132
280	460	220	148	172	12	M20	20	2900	319	470	132
280	460	230	148	172	12	M20	20	3087	355	470	132
300	485	230	152	176	12	M20	20	2965	341	470	140
300	485	240	152	176	12	M20	20	3175	381	470	140
300	485	245	152	176	12	M20	20	3273	401	470	140
320	520	240	160	184	12	M20	24	3317	398	470	165
320	520	250	160	184	12	M20	24	3536	442	470	165
320	520	260	160	184	12	M20	24	3738	486	470	165
340	570	250	176	200	12	M24	20	4080	510	820	240
340	570	260	176	200	12	M24	20	4307	560	820	240
340	570	270	176	200	12	M24	20	4519	610	820	240
360	590	280	180	204	12	M24	20	4707	659	820	250
360	590	290	180	204	12	M24	20	4931	715	820	250
360	590	295	180	204	12	M24	20	5044	744	820	250
390	660	300	188	212	12	M24	24	5733	860	820	350
390	660	310	188	212	12	M24	24	5903	915	820	350
390	660	320	188	212	12	M24	24	6063	970	820	350
420	690	330	214	238	12	M24	28	6182	1020	820	410
420	690	340	214	238	12	M24	28	6470	1100	820	410
420	690	350	214	238	12	M24	28	6743	1180	820	410
460	770	360	224	252	14	M27	24	7222	1300	1210	540
460	770	370	224	252	14	M27	24	7514	1390	1210	540
460	770	380	224	252	14	M27	24	7789	1480	1210	540
500	850	400	246	274	14	M27	30	9400	1880	1210	750
500	850	410	246	274	14	M27	30	9659	1980	1210	750
500	850	420	246	274	14	M27	30	9905	2080	1210	750
