Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z7D
Price :	USD 10.00 - 40.00 / pc
Payment Terms :	T/T
Supply Ability :	1000 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load

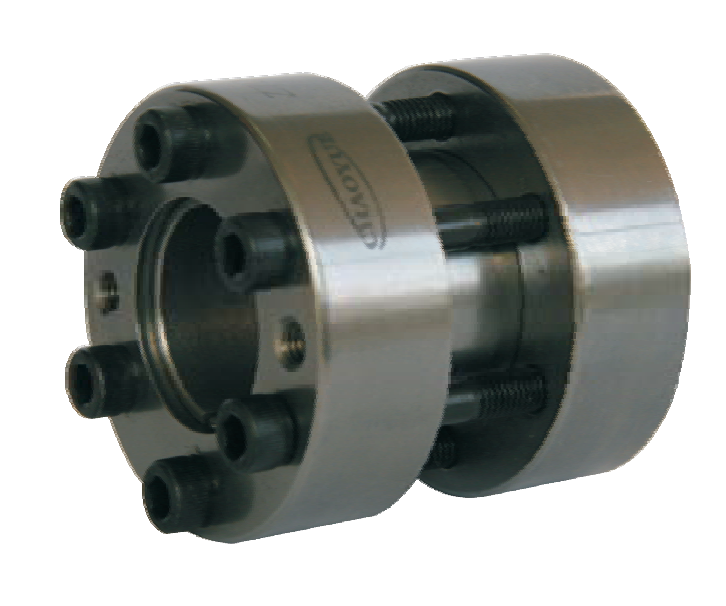

Z7D Keyless Shaft Clamping Elements Locking Assembly

Mounting Example

Fundamental Dimension [mm]						Bolt		Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	L	L₁	L₂	L₃	d₁	n	Axial Force [kN]	Toruqe [N.m]	Torque of Tighten Bolt [N.m]	Weight [kg]
15	45	56	50	16	17	M6	4	19	140	17	0.4
16	45	56	50	16	17	M6	4	20	160	17	0.38
17	45	56	50	16	17	M6	4	21	180	17	0.37
18	50	56	50	16	17	M6	4	20	180	17	0.5
19	50	56	50	16	17	M6	4	21	200	17	0.49
20	50	56	50	16	17	M6	4	22	220	17	0.47
22	55	66	60	20	20	M6	6	29	320	17	0.45
24	55	66	60	20	20	M6	6	32	390	17	0.4
25	55	66	60	20	20	M6	6	33	420	17	0.38
28	60	66	60	20	20	M6	6	31	440	17	0.91
30	300	130	72	88	8	M16	10	880	57.2	240	29
32	300	135	72	88	8	M16	10	924	62.4	240	29
35	330	135	92	112	10	M16	15	1037	70	240	47
38	330	140	92	112	10	M16	15	1100	77	240	47
40	330	145	92	112	10	M16	15	1159	84	240	47
42	350	145	92	112	10	M16	15	1291	93	240	50
45	350	150	92	112	10	M16	15	1353	101.5	240	50
48	350	155	92	112	10	M16	15	1409	109.2	240	50
50	370	160	114	134	10	M16	20	1625	130	240	65
55	370	165	114	134	10	M16	20	1703	140.5	240	65
60	370	170	114	134	10	M16	20	1776	151	240	65
65	405	170	120	144	12	M20	15	1835	156	470	87
68	405	180	120	144	12	M20	15	1994	179.5	470	87
70	405	190	120	144	12	M20	15	2137	203	470	87
75	430	190	136	160	12	M20	16	2242	213	470	100
80	430	200	136	160	12	M20	16	2390	239	470	100
85	430	210	136	160	12	M20	16	2542	265	470	100
90	460	210	148	172	12	M20	20	2686	282	470	132
