| Brand Name : | CHAOYUE |
| Model Number : | Z9 |
| Price : | USD 35.00 - 950.00 / pc |
| Payment Terms : | T/T |
| Supply Ability : | 500 pcs per month |
| Delivery Time : | 1 - 3 weeks |

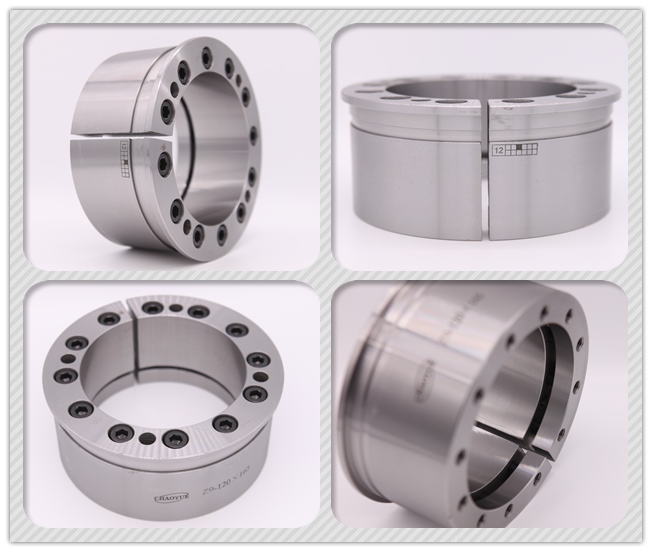

Z9 Standard Keyless shaft shrink disc locking device
Mounting Example
| Fundamental Dimension [mm] | Bolt | Rated Load | Pressure on Shaft N/mm2 | Pressure on Hub N/mm2 | Torque of Tighten Bolt [N.m] | Weight [kg] | |||||||
| d | D | L | L1 | e | B | d1 | n | Axial Force [kN] | Toruqe [kN.m] | ||||
| 100 | 145 | 75 | 54 | 5 | 65 | M12 | 8 | 192 | 9.6 | 102 | 70 | 145 | 4.7 |
| 110 | 155 | 75 | 54 | 5 | 65 | M12 | 8 | 197 | 10.5 | 93 | 66 | 145 | 5.1 |
| 120 | 165 | 75 | 54 | 5 | 65 | M12 | 9 | 216 | 13 | 96 | 70 | 145 | 5.5 |
| 130 | 180 | 84 | 63 | 6 | 72 | M12 | 12 | 287 | 17.8 | 100 | 78 | 145 | 7.5 |
| 140 | 190 | 84 | 63 | 6 | 72 | M12 | 12 | 287 | 20.2 | 94 | 69 | 145 | 7.9 |
| 150 | 200 | 84 | 63 | 6 | 72 | M12 | 12 | 287 | 21.6 | 88 | 66 | 145 | 8.4 |
| 160 | 210 | 84 | 63 | 6 | 72 | M12 | 15 | 360 | 28.8 | 101 | 77 | 145 | 8.9 |
| 170 | 225 | 84 | 63 | 6 | 72 | M12 | 16 | 383 | 32.6 | 101 | 76 | 145 | 10.5 |
| 180 | 235 | 84 | 63 | 6 | 72 | M12 | 18 | 431 | 38.8 | 108 | 82 | 145 | 11 |
| 190 | 250 | 96 | 69 | 6 | 81 | M14 | 15 | 493 | 46.8 | 106 | 80 | 230 | 14.3 |
| 200 | 260 | 94 | 69 | 6 | 81 | M14 | 16 | 526 | 52.8 | 100 | 77 | 230 | 15 |
| 220 | 285 | 94 | 69 | 6 | 81 | M16 | 14 | 640 | 70 | 119 | 92 | 355 | 17.8 |
| 240 | 305 | 112 | 86 | 7 | 98 | M16 | 16 | 731 | 88 | 96 | 75 | 355 | 23.2 |
| 260 | 325 | 112 | 86 | 7 | 98 | M16 | 18 | 822 | 107 | 103 | 82 | 355 | 24.8 |
| 280 | 355 | 120 | 94 | 8 | 106 | M16 | 20 | 910 | 128 | 96 | 75 | 355 | 33 |
| 300 | 375 | 120 | 94 | 8 | 106 | M16 | 22 | 1000 | 151 | 99 | 79 | 355 | 36 |
| 320 | 405 | 142 | 109 | 8 | 125 | M20 | 18 | 1280 | 206 | 101 | 80 | 690 | 52 |
| 340 | 425 | 142 | 109 | 8 | 125 | M20 | 20 | 1420 | 242 | 106 | 85 | 690 | 54 |
| 360 | 455 | 159 | 120 | 8 | 140 | M22 | 20 | 1770 | 319 | 113 | 89 | 930 | 72 |
| 380 | 475 | 159 | 120 | 8 | 140 | M22 | 20 | 1770 | 337 | 109 | 87 | 930 | 75 |
| 400 | 485 | 159 | 120 | 8 | 140 | M22 | 20 | 1770 | 355 | 101 | 83 | 930 | 78 |
| 420 | 515 | 159 | 120 | 8 | 140 | M22 | 22 | 1980 | 410 | 107 | 87 | 930 | 82 |
|
|
