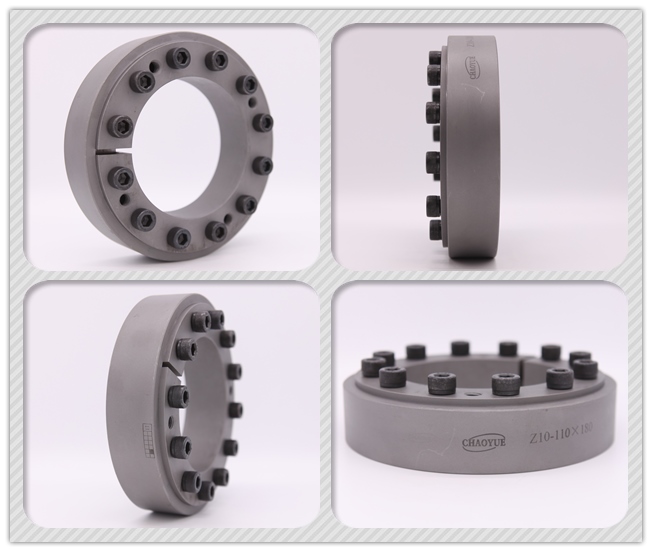

Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z10
Price :	USD 5.00 - 30.00 / pc
Payment Terms :	T/T
Supply Ability :	1000 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp

Z10 Bore Size 12mm To 90mm Standard Keyless Shaft Locking Assembly

Mounting Example

Fundamental Dimension [mm]						Bolt	Rated Load		Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	d_w	L	H	e	d₁	Axial Force [kN]	Toruqe [kN.m]	Torque of Tighten Bolt [N.m]	Weight [kg]
12	32	10	9	11	1	M5	8	0.038	5	0.06
14	37	12	9	11	1	M5	9	0.052	5	0.08
16	41	14	12	15	1.5	M5	13	0.09	5	0.12
18	44	15	12	15	1.5	M5	10	0.08	5	0.12
18	44	16	12	15	1.5	M5	14	0.112	5	0.12
20	47	17	12	15	1.5	M5	16	0.14	5	0.15
20	47	18	12	15	1.5	M5	20	0.184	5	0.15
24	50	19	14	18	2	M5	17	0.16	5	0.2
24	50	20	14	18	2	M5	20	0.2	5	0.2
24	50	22	14	18	2	M5	25	0.28	5	0.3
30	60	24	16	20	2	M5	23	0.28	5	0.3
30	60	25	16	20	2	M5	25	0.32	5	0.3
30	60	26	16	20	2	M5	27	0.36	5	0.3
36	72	28	18	22	2	M6	37	0.55	12	0.4
36	72	30	18	22	2	M6	43	0.68	12	0.4
36	72	31	18	22	2	M6	46	0.74	12	0.4
44	80	34	20	24	2	M6	41	0.7	12	0.6
44	80	35	20	24	2	M6	44	0.77	12	0.6
44	80	36	20	24	2	M6	47	0.85	12	0.6
50	90	38	22	26	2.5	M6	55	1.1	12	0.8
50	90	40	22	26	2.5	M6	64	1.32	12	0.8
50	90	42	22	26	2.5	M6	72	1.54	12	0.8
55	100	42	23	29	3	M6	54	1.13	12	1.1
55	100	45	23	29	3	M6	66	1.5	12	1.1
55	100	48	23	29	3	M6	77	1.85	12	1.1
62	110	48	23	29	3	M6	69	1.6	12	1.3
62	110	50	23	29	3	M6	77	1.92	12	1.3
62	110	52	23	29	3	M6	84	2.17	12	1.3
68	115	50	23	29	3	M6	73	1.8	12	1.4
68	115	55	23	29	3	M6	90	2.44	12	1.4
68	115	60	23	29	3	M6	103	3.1	12	1.4
75	138	55	25	31	4	M8	97	2.7	29	1.7
75	138	60	25	31	4	M8	117	3.52	29	1.7
75	138	65	25	31	4	M8	133	4.3	29	1.7
80	145	60	25	31	4	M8	108	3.25	29	1.9
80	145	65	25	31	4	M8	121	3.97	29	1.9
80	145	70	25	31	4	M8	133	4.7	29	1.9
90	155	65	30	38	4	M8	145	4.7	29	3.3
90	155	70	30	38	4	M8	170	5.98	29	3.3
90	155	75	30	38	4	M8	190	7.2	29	3.3
