Length 48mm Torque 547N.M One Way Roller Clutch Freewheel

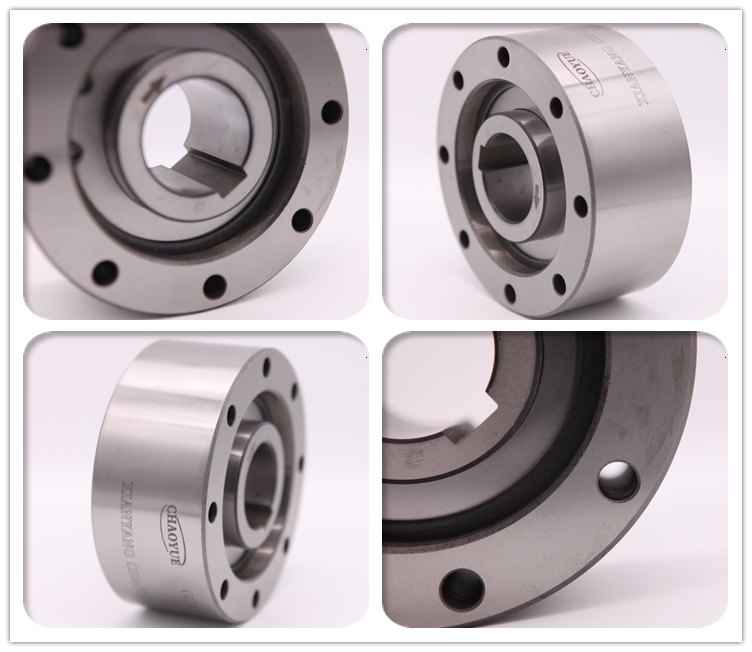

GC-D AA One Way Roller Freewheel Clutch One Way Bearing

Type GC-D is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Standard lubrication is oil.

Standard install is the outer race fitting in the rabbet and screwed to the bond. The inner race is keyed to the shaft. The rabbet for install the outer race must be H7 tolerance, ensure a high axiality.

This series extensive used in machinery system of packing, printing, papermaking, weaving, chemical, medical, food and so on.

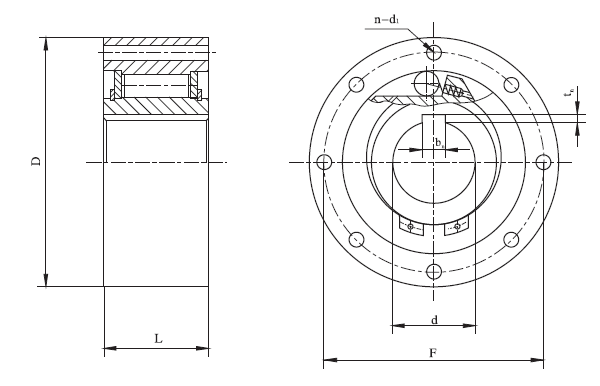

Mounting Example

Type	Nominal Torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Coutour [mm]						Weight [kg]
Type	Nominal Torque [N.m]	Inner Race	Outer Race	d[H7]	D[h7]	F	L	n - d₁	b_n x t_n	Weight [kg]
GC-D1247	12	1550	3000	12	47	38	20	3 - 5.5	4 x 1.8	0.21
GC-D1555	42	1150	2700	15	55	45	30	3 - 5.5	5 x 2.3	0.44
GC-D2068	111	1000	1800	20	68	58	34	4 - 5.5	6 x 2.8	0.7
GC-D2590	215	850	1300	25	90	78	37	6 - 5.5	8 x 3.3	1.3
GC-D30100	380	750	1050	30	100	87	44	6 - 6.6	8 x 3.3	2
GC-D35110	547	650	975	35	110	96	48	6 - 6.6	10 x 3.3	2.6
GC-D40125	760	600	850	40	125	108	56	6 - 9.0	12 x 3.3	3.9
GC-D45130	855	525	750	45	130	112	56	8 - 9.0	14 x 3.8	4
GC-D50150	1634	475	650	50	150	132	63	8 - 9.0	14 x 3.8	6
GC-D55160	1995	425	600	55	160	138	67	8 - 11	16 x 4.3	7.2
GC-D60170	1660	400	550	60	170	150	78	10 - 11	18 x 4.4	9.2
GC-D70190	4370	325	450	70	190	165	95	10 - 11	20 x 4.9	11.8
