    Heavy Machinery Non Contact Backstop Cam Clutch , Backstop Bearing

    Ask Lasest Price
    Brand Name : CHAOYUE
    Model Number : CKZ-F
    Price : USD 300.00 - 1850.00 / pc
    Payment Terms : T/T
    Supply Ability : 500 pcs per month
    Delivery Time : 1 - 3 weeks
    • Product Details
    • Company Profile

    Heavy Machinery Non Contact Backstop Cam Clutch , Backstop Bearing

    CKZ-F Heavy Machinery Non Contact Backstop Cam Clutch 165 - 360 Mm


    Precautions 1. Install clutch
    And a shaft mounted to the case where the pneumatic clutch drive disc is mounted to the V-shaped pulleys, sprockets, etc., do not give excessive impact to the clutch. After installation, confirm that the disc and friction plate
    The gap spacing between about 0.5 ~ 0.8mm.
    2. Implicated rotation
    Air chamber caused by a bearing portion of the piston co-rotation, with a pneumatic pipe connector dedicated subsidiary pipe (hydraulic rubber tube) to prevent its occurrence. NAC40, 60, according to the different conditions of use,
    The spring pin in the piston pin hole to prevent co-rotation.
    3. Lubrication of the bearing
    NAC pneumatic clutch thrust ball bearing grease replenishment intervals, according to different environmental conditions, typically 1 to 6 months. Because other bearings use sealed bearings, there is no replenishment
    The importance of.
    4. The hydraulic control device of the clutch portion and the axial length dimensions
    Try to make the center of the V-shaped pulleys mounted within an allowable range is received from the end portion of the hydraulic control device. When the clutch is mounted to the shaft end, onto the inner surface of the hub axle to a lesser extent.



    Mounting Example


    TypeNominal torque
    [N.m]
    Max Non Contact Overrunning Speed
    [r / min]
    Min Non Contact Overrunning Speed
    [r / min]

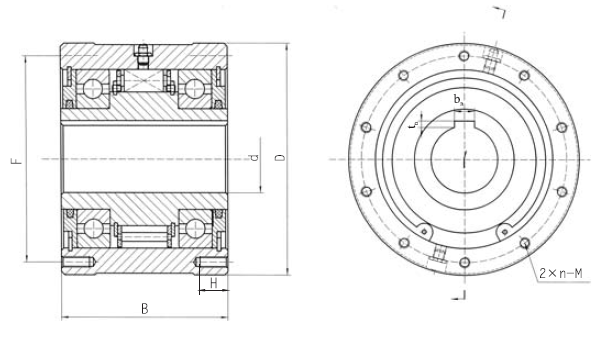

    Dimension in Contour [mm]Weight
    [kg]
    Outer Race SizeInner Race Size
    D
    [h8]
    FB
    [js9]
    n - MHd
    [E7]
    bn x tn
    CKZ-F2516540015004801651451258 - M820258 x 3.320.51
    CKZ-F3017050015004701701501308 - M820308 x 3.322.46
    CKZ-F35175270515004501751551308 - M10203510 x 3.323.6
    CKZ-F40185332015004301851621308 - M10254012 x 3.324.16
    CKZ-F50190250015004201901681358 - M10255014 x 3.826.95
    CKZ-F55195356015004001951721458 - M10255516 x 4.331.31
    CKZ-F552053360150040020518514510 - M10255516 x 4.334.81
    CKZ-F602084220150040020818515010 - M10256018 x 4.436.71
    CKZ-F652204200150040022019515010 - M10256518 x 4.440.88
    CKZ-F702304850150039023020515012 - M10257020 x 4.944.42
    CKZ-F802455710150038024521816012 - M12258022 x 5.452.93
    CKZ-F902606300150037026023016012 - M14259022 x 5.458.74
    CKZ-F1002758360150037027524517012 - M142510028 x 6.468.83
    CKZ-F11029512060150037029526018512 - M163011028 x 6.485.46
    CKZ-F13033019920150035033029520012 - M163013032 x 6.4113.44
    CKZ-F14036023600150035036032021512 - M183014036 x 8.4145.81
