0.5KG 7Ncm 40mm Diameter One Way Roller Bearing Single Keyway

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	CSK
Price :	USD 2.50 - 10.00 / pc
Payment Terms :	T/T
Supply Ability :	5000 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

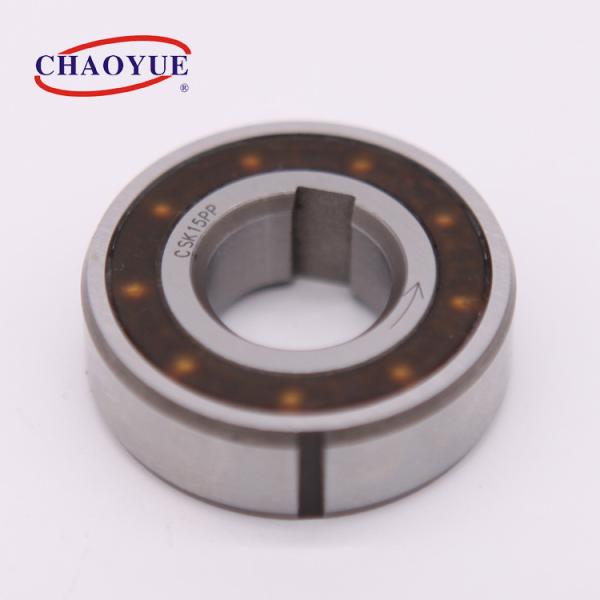

0.5KG 7Ncm 40mm Diameter One Way Roller Bearing Single Keyway

CSK / UK 0.7 - 10 NcmOne Way Overrunning Clutch Bearing Single Keyway / Double Keyway

Way bearing is rotated in one direction and lock in the other direction a bearing. Also known as one-way bearing clutch, but according to different industries, different role named. Metal housing's one-way bearing, comprising a number of rollers, needle rollers or balls, and the rolling seats (hole) shape it only scroll in one direction, while in the other direction will have a great resistance ( The so-called "one-way").

Monting Example

Type	Dimension in Coutour [mm]									Bearing Loads		Bearing [GB/T276]	Friction Resistance TR [Ncm]	Weight
Type	d	T_kn¹⁾ [Nm]	ⁿmax [min^-1]	D	L	b	t	b₁	t₁	Dyn. [kN]	Stat. [kN]	Bearing [GB/T276]	Friction Resistance TR [Ncm]	Weight
CKS..P UKC	12	9.3	10000	32	10			4	1.2	6.1	2.77	6201	0.7	0.04
	15	17	8400	35	11			5	1.2	7.4	3.42	6202	0.9	0.06
	17	30	7350	40	12			5	1.2	7.9	3.8	6203	1.1	0.07
	20	50	6000	47	14			6	1.6	9.4	4.46	6204	1.3	0.11
	25	85	5200	52	15			8	2	10.7	5.46	6205	2	0.14
	30	138	4200	62	16			8	2	11.7	6.45	6206	4.4	0.21
	35	175	3600	72	17			10	2.4	12.6	7.28	6207	5.8	0.3
	40*	325	3000	80	22			12	3.3	15.54	12.25	-	7	0.5
CSK..PP UKCC	15	17	8400	35	11	2	0.6	5	1.2	7.4	3.42	6202	0.9	0.06
	17	30	7350	40	12	2	1	5	1.2	7.9	3.8	6203	1.1	0.07
	20	50	6000	47	14	3	1.5	6	1.6	9.4	4.46	6204	1.3	0.11
	25	85	5200	52	15	6	2	8	2	10.7	5.46	6205	2	0.14
	30	138	4200	62	16	6	2	8	2	11.7	6.45	6206	4.4	0.21
						8	2.5
	40	325	3000	80	22	10	3	12	3.3	15.54	12.25	-	7	0.5
CSK..PP-2RS	12	9.3	10000	32	14			4	1.2	6.1	2.77	-	3	0.05
	15	17	8400	35	16			5	1.2	7.4	3.42	-	4	0.07
	17	30	7350	40	17			5	1.2	7.9	3.8	-	5.6	0.09
	20	50	6000	47	19			6	1.6	9.4	4.46	-	6	0.145
	25	85	5200	52	20			8	2	10.7	5.46	-	6	0.175
	30	138	4200	62	21			8	2	11.7	6.45	-	7.5	0.27
	35	175	3600	72	22			10	2.4	12.6	7.28	-	8.2	0.4
	40	325	3000	80	27			12	3.3	15.54	12.25	-	10	0.6
