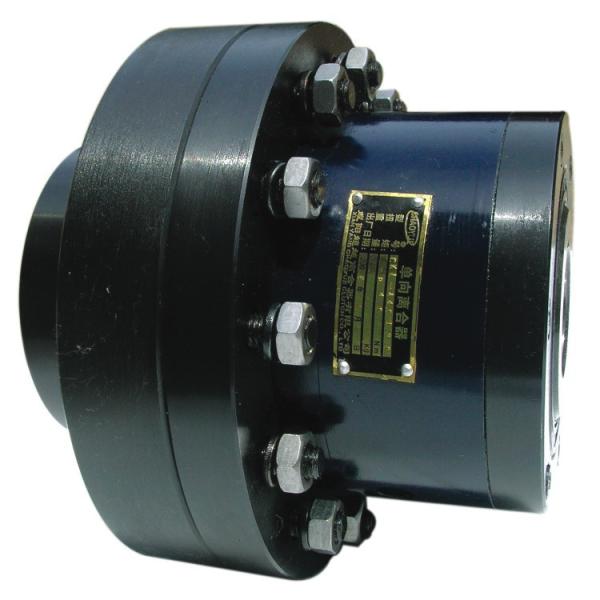

Name: Sprag Type 13000NM 95mm Diameter High Torque Starter Overrunning Clutch
Brand: CHAOYUE
Price: 85.00 USD

Add to Cart

CKL-A 93 - 434.5 MmSprag One Way Overrunning Clutch Shaft Coupling Bearing

CKL-A flywheel type is spline-type, self-contained, sealed by the bearing support, the delivery means in the form of oil lubrication.

Flange and the inner race relative to the key shaft.

This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic, metallurgy, mining and so on.

Mounting Example

Type	Nominal torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Contour [mm]									Weight [kg]
		Overrunning Limiting Speed [r / min]		Dimension in Contour [mm]
		Inner Race	Outer Race	d [H7]	d_k [H7]	D	D₁	L	L₁	L₂	B	b_n x t_n
CKL-A1252	44	2125	2100	12	12 - 25	52	97	93	35	42	13	2 x 1.0	3
CKL-A1568	90	1615	2100	15	15 - 30	68	112	110	40	52	14	3 x1.4	4.4
CKL-A2075	98	1360	1960	20	15 - 30	75	118	114	40	56	14	3 x 1.4	4.6
CKL-A2590	230	1190	1610	25	20 - 40	90	130	132	50	60	18	4 x 1.8	6.4
CKL-A30100	400	1105	1470	30	20 - 50	100	160	154	60	66	21	5 x 2.3	11
CKL-A35110	580	935	1330	35	25 - 65	110	190	174	75	74	19	6 x 2.8	17
CKL-A40125	820	807	1190	40	25 - 65	125	190	187	75	86	21	6 x 2.8	19
CKL-A45130	840	765	1120	45	25 - 65	130	190	188	75	86	21	6 x 2.8	19
CKL-A48150	1400	730	1000	48	25 - 65	150	225	208	90	88	25	14 x 3.8	31.5
CKL-A50150	1400	722	980	50	30 - 75	150	225	213	90	92	25	14 x 3.8	31
CKL-A55160	1600	612	910	55	35 - 90	160	270	234	100	100	27	16 x 4.3	47
CKL-A60170	2200	578	840	60	35 - 90	170	270	244	94	114	30	18 x 4.4	49
CKL-A70170	2200	578	840	70	35 - 90	170	270	267	117	114	30	20 x 4.9	48
CKL-A70190	4500	493	770	70	45 - 110	190	340	318.5	140	134	38.5	20 x 4.9	90
CKL-A75170	2200	578	840	75	35 - 90	170	270	291	140	114	30	20 x 4.9	46
CKL-A75190	4500	493	770	75	50 - 120	190	340	315	140	134	35	20 x 4.9	88
CKL-A80210	6800	408	630	80	55 - 125	210	380	344	160	142	35	22 x 5.4	107
CKL-A90230	11000	323	595	90	65 - 140	230	440	381	160	159	50	25 x 6.4	170
CKL-A95230	11000	323	595	95	70 - 145	230	440	381	160	159	50	25 x 5.4	165
CKL-A95250	13000	300	550	95	70 - 150	250	420	410	190	175	35	25 x 5.4	198
CKL-A100270	16000	297	525	100	75 - 160	270	500	434.5	200	182	40.5	28 x 6.4	230
