Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	GCZ-B
Price :	USD 70.00 - 1550.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing

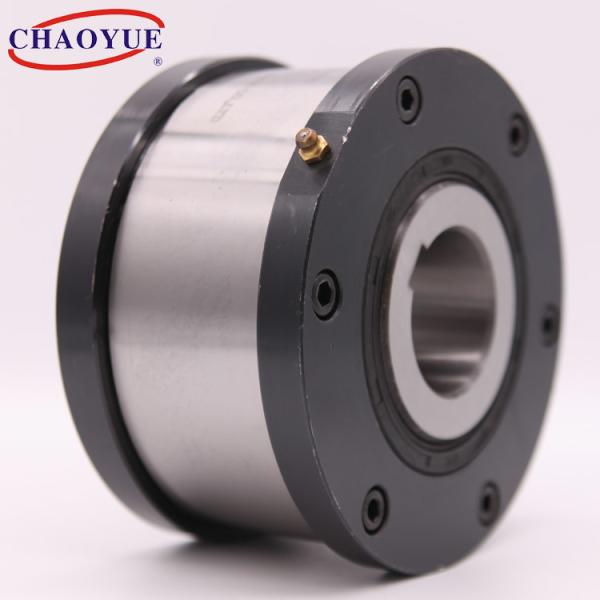

GCZ-B Roller Type Indexing Overrunning Clutch Bearing

Type GCZ-B is a roller type freewheels, self contained, sealed and bearing supported, using two 160 series bearings. Units are delivered oil lubricated.

A keyway is machined on the outer race for the connection to the drive or drive member centered on its outside. Cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.

This type extensive used in machinery system of conveyor, hosting, packing, printing, papermaking, weaving, food and so on, to realize overruning and indexing.

Mounting Example

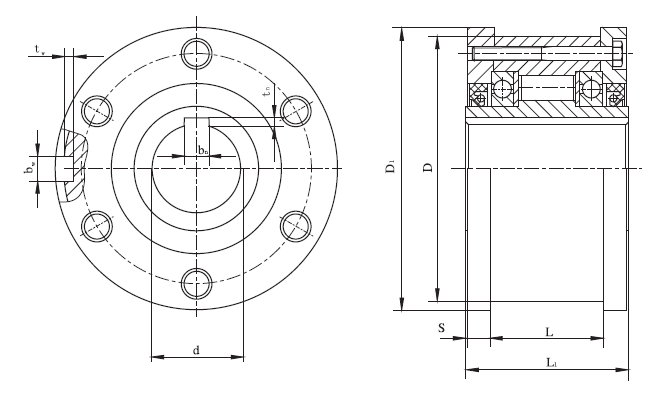

Type	Nominal Torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Coutour [mm]								Weight [kg]
Type	Nominal Torque [N.m]	Inner Race	Outer Race	d[H7]	D[h6]	D₁	L	L₁	S	b_w x t_w	b_n x t_n	Weight [kg]
GCZ-B1262	44	1600	2800	12	62	70	20	42	10	4 x 2.5	4 x 1.8	1
GCZ-B1568	100	1450	2600	15	68	76	28	52	11	5 x 3.0	5 x 2.3	1.4
GCZ-B2075	151	1080	2300	20	75	84	34	57	11	6 x 3.5	6 x 2.8	1.9
GCZ-B2590	230	840	1800	25	90	99	35	60	12	8 x 4.0	8 x 3.3	2.8
GCZ-B30100	400	680	1600	30	100	109	43	68	12	8 x 4.0	8 x 3.3	3.7
GCZ-B35110	580	620	1500	35	110	119	45	74	13.5	10 x 5	10 x 3.3	4.7
GCZ-B40125	820	460	1300	40	125	135	53	86	15.5	12 x 5	12 x 3.3	7.1
GCZ-B45130	900	400	1200	45	130	140	53	86	15.5	14 x 5.5	14 x 3.8	7.4
GCZ-B50150	1700	320	1075	50	150	160	64	94	13	14 x 5.5	14 x 3.8	10.4
GCZ-B55160	1890	260	1000	55	160	170	66	104	17.5	16 x 6.0	16 x 4.3	13.4
GCZ-B60170	2520	220	950	60	170	182	78	114	16.5	18 x 7.0	18 x 4.4	15.9
GCZ-B70190	4320	210	875	70	190	202	95	134	18	20 x 7.5	20 x 4.9	20.8
GCZ-B80210	7285	200	800	80	210	222	100	144	20.5	22 x 9.0	22 x 5.4	27.1
GCZ-B90230	9440	180	725	90	230	242	115	158	20.5	25 x 9.0	22 x 5.4	39.4
GCZ-B100270	12800	140	625	100	270	282	120	182	28.5	28 x 10	28 x 6.4	66.4
GCZ-B120310	20000	100	500	120	310	322	152	212	22.5	32 x 11	32 x 7.4	91.5
