Z16 Standard Thickness 113mm Sleeve Type Expansion Joint Power Lock

Z16 Standard Steel Keyless Power Lock Device

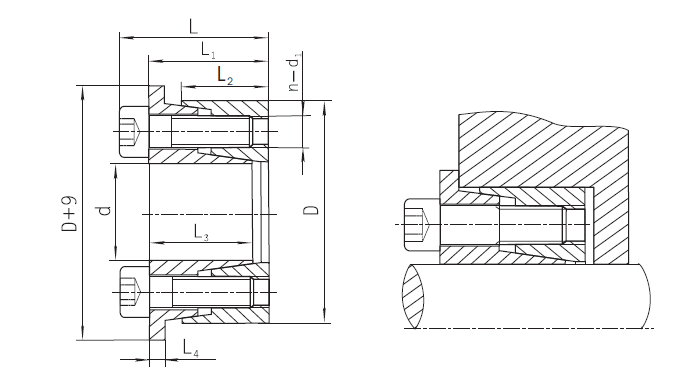

Mounting Example

Fundamental Dimension [mm]							Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	L	L₁	L₂	L₃	L₄	d₁	n	Torque [kN·m]	Axial Force [kN]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
20	47	29	23	17	20	3	M6	6	0.28	28	185	92	17	0.26
22	47	29	23	17	20	3	M6	6	0.31	28	168	92	17	0.25
24	50	29	23	17	20	3	M6	6	0.34	28	154	87	17	0.28
25	50	29	23	17	20	3	M6	6	0.35	28	148	87	17	0.3
28	55	29	23	17	20	3	M6	8	0.52	37	176	105	17	0.32
30	55	29	23	17	20	3	M6	8	0.56	37	164	105	17	0.31
35	60	29	23	17	20	3	M6	9	0.74	42	158	109	17	0.34
40	65	29	23	17	20	3	M6	10	0.93	46	154	111	17	0.38
45	75	36	28	20	24	4	M8	8	1.56	69	170	122	41	0.64
50	80	36	28	20	24	4	M8	9	2	78	172	129	41	0.69
55	85	36	28	20	24	4	M8	10	2.4	86	173	135	41	0.75
60	90	36	28	20	24	4	M8	10	2.6	86	159	127	41	0.8
65	95	36	28	20	24	4	M8	12	3.4	104	176	145	41	0.85
70	110	44	34	24	29	5	M10	10	4.8	137	179	138	83	1.56
75	115	44	34	24	29	5	M10	10	5.15	137	167	132	83	1.65
80	120	44	34	24	29	5	M10	11	6.05	151	172	139	83	1.73
85	125	44	34	24	29	5	M10	12	7	164	177	145	83	1.83
90	130	44	34	24	29	5	M10	12	7.4	164	167	140	83	1.91
95	135	44	34	24	29	5	M10	12	7.8	164	158	135	83	1.99
100	145	50	38	28	33	5	M12	11	10.3	207	166	135	145	2.68
110	155	50	38	28	33	5	M12	11	11.4	207	151	126	145	2.9
120	165	50	38	28	33	5	M12	14	15.8	263	176	151	145	3.1
130	180	55	43	33	38	5	M12	16	19.5	301	161	134	145	4.25
140	190	55	43	33	38	5	M12	16	21	301	150	127	145	4.5
150	200	55	43	33	38	5	M12	18	25.4	338	157	136	145	4.8
160	210	55	43	33	38	5	M12	20	30	376	164	144	145	5
170	225	63	49	38	43	5	M14	16	35	412	150	128	230	6.8
180	235	63	49	38	43	5	M14	18	41.8	464	159	138	230	7.1
190	250	71	57	46	51	5	M14	21	51.4	541	148	125	230	9.6
200	260	71	57	46	51	5	M14	24	62	619	161	137	230	10
220	285	77	61	50	55	5	M16	20	78	714	156	133	355	12.7
240	305	77	61	50	55	5	M16	21	92	770	154	137	355	13.8
260	325	77	61	50	55	5	M16	24	112	860	159	140	355	14.8
280	355	91	72	60	65	5	M18	24	145	1034	151	129	485	22.2
300	375	91	72	60	65	5	M18	27	175	1164	158	137	485	23.6
320	405	105	85	72	77	5	M20	27	242	1510	162	137	690	33.4
340	425	105	85	72	77	5	M20	27	257	1510	153	131	690	35.3
360	455	121	99	84	89	5	M22	24	338	1880	156	131	930	49
380	475	121	99	84	89	5	M22	24	360	1890	148	126	930	51.5
400	495	121	99	84	89	5	M22	28	439	2193	163	140	930	53.8
420	515	121	99	84	89	5	M22	30	494	2350	167	145	930	56.3
440	545	137	113	96	101	5	M24	32	566	2572	153	130	1200	74.8
460	565	137	113	96	101	5	M24	32	592	2572	147	126	1200	77.8
480	585	137	113	96	101	5	M24	32	617	2572	141	121	1200	81
500	605	137	113	96	101	5	M24	36	723	2893	152	132	1200	84
520	630	137	113	96	101	5	M24	36	752	2893	146	128	1200	91.6
540	650	137	113	96	101	5	M24	36	781	2893	141	131	1200	94.6
560	670	137	113	96	101	5	M24	40	900	3215	151	133	1200	97.9
580	690	137	113	96	101	5	M24	40	932	3215	145	129	1200	101
600	710	137	113	96	101	5	M24	40	964	3215	141	125	1200	104
