Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	CKZ-A
Price :	USD 100.00 - 275.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A

CKZ-A Sprag One Way Backstop Cam Clutch Freewheel Bearing

Type CKZ-A is sprag type freewheels, self contained, sealed and bearing supported, using two ball bearings. Unit is delivered oil or grease lubricated according to the type.

The inner race is keyed to the shaft, the outer race has a h7 tolerance to give a fit in H7 housing and it is screwed to the bond.

This type extensive used in machinery of packing, traffic, metallurgy, mine and so on. to realize backstop or overrunning in dule drives.

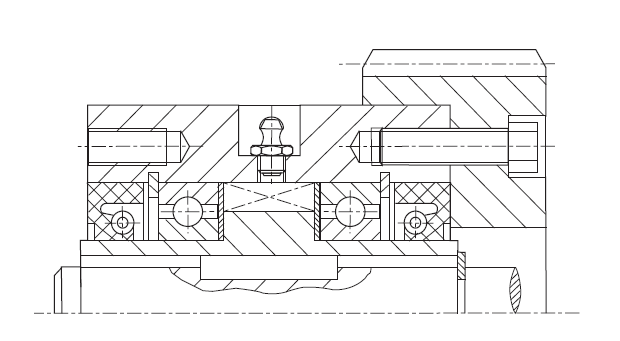

Mounting Example

Type	Nominal torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Contour [mm]								Weight [kg]
		Overrunning Limiting Speed [r / min]		Outer Race					Inner Race
		Inner Race	Outer Race	D [h7]	B	F	n - M	H	d [H7]	C	b_n x t_n
CKZ-A1890	298	1100	460	90	54	75	6 - M6	15	18	56	6 x 2.8	2.46
CKZ-A2080	175	1200	510	80	60	68	4 - M6	15	20	62	6 x 2.8	1.89
CKZ-A2590	298	1100	460	90	49	75	6 - M6	15	25	50	8 x 2.5	2.35
CKZ-A25100	630	1000	425	100	79	88	6 - M8	16	25	80	8 x 3.3	4.12
CKZ-A28100	630	1000	425	100	78	86	6 - M8	20	28	80	8 x 3.3	3.98
CKZ-A30100	630	1000	425	100	78	86	6 - M8	20	30	80	10 x 3.3	3.8
CKZ-A32100	630	1000	425	100	78	86	6 - M8	20	32	80	10 x 3.3	3.71
CKZ-A35100	630	1000	425	100	78	86	6 - M8	20	35	80	10 x 3.3	3.6
CKZ-A38115	1115	900	400	115	90	100	6 - M8	20	38	82	10 x 3.3	4.9
CKZ-A40115	1115	900	400	115	80	100	6 - M8	20	40	82	10 x 3.3	4.89
CKZ-A40120	1160	900	400	120	80	105	6 - M8	20	40	82	10 x 3.3	5.39
CKZ-A42125	1268	900	400	125	90	105	6 - M8	20	42	92	12 x 3.3	6.56
CKZ-A45125	1268	900	400	125	90	110	8 - M8	25	45	92	14 x 3.8	6.51
CKZ-A45138	1580	750	350	138	101	124	6 - M8	20	45	105	12 x 5.0	8.85
CKZ-A45140	1585	750	350	140	95	120	6 - M10	25	45	97	14 x 3.8	8.78
CKZ-A50135	970	800	400	135	70	115	6 - M10	20	50	72	14 x 3.8	6.61
CKZ-A50150	1900	700	300	150	95	130	6 - M10	25	50	97	14 x 3.8	9.99
CKZ-A50160	2290	600	250	160	90	140	6 - M10	20	50	90	14 x 3.8	12.86
CKZ-A50180	3100	500	150	180	124	158	6 - M10	25	50	128	14 x 3.8	16.9
CKZ-A55145	1850	700	300	145	100	130	6 - M8	20	55	102	14 x 3.8	9.42
CKZ-A55160	2290	600	250	160	105	140	6 - M10	25	55	107	16 x 4.3	12.47
CKZ-A55170	2720	600	200	170	110	146	8 - M8	15	55	112	16 x 4.3	14.23
CKZ-A65170	2720	600	200	170	105	150	6 - M10	25	65	107	16 x 4.3	13.63
CKZ-A70180	3100	500	150	180	110	160	6 - M10	25	70	112	20 x 4.9	15.91
