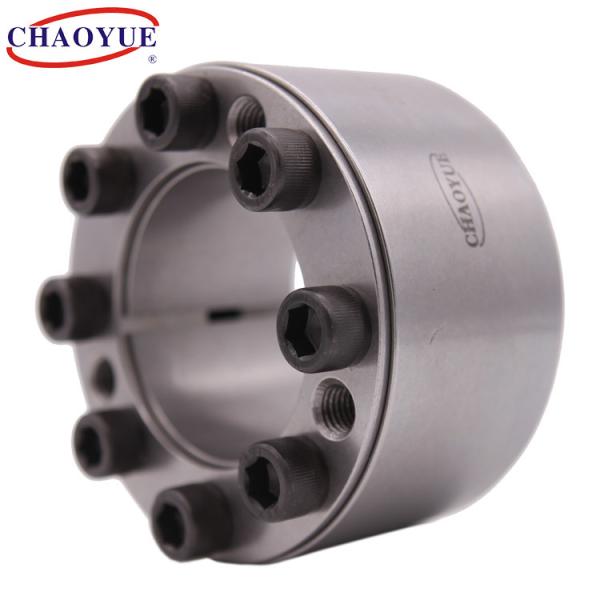

Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z4
Price :	USD 40.00 - 470.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Steel M20 Bolt 1650kN Keyless Locking Assembly For Power Transmission

Z4 Steel Bushing Keyless Locking Assembly For Machinery

Mounting Example

Fundamental Dimension [mm]					Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	L	L₁	L₂	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
70	120	74	62	56	M12	8	197	6.85	201	117	145	3.3
80	130	74	62	56	M12	12	291	11.65	263	162	145	3.7
90	140	74	62	56	M12	12	290	13	234	150	145	4
100	160	94	80	74	M14	15	389	19.7	213	133	230	7.2
110	170	94	80	74	M14	15	483	22.6	242	157	230	7.7
120	180	94	80	74	M14	15	482	28.9	222	148	230	8.3
125	185	94	80	74	M14	15	430	30	212	143	230	8.5
130	190	94	80	74	M14	15	430	31.2	205	140	230	8.8
140	200	94	80	74	M14	18	574	40.2	227	159	230	9.3
150	210	94	80	74	M14	18	572	42.9	212	152	230	10
160	230	110	94	88	M16	18	800	64	227	158	355	14.9
170	240	110	94	88	M16	18	795	67.8	214	152	355	15.7
180	250	110	94	88	M16	21	923	83	235	170	355	16.4
190	260	110	94	88	M16	21	921	88	223	163	355	17.2
200	270	110	94	88	M16	24	1050	105	242	179	355	18.8
210	290	134	116	110	M18	20	1118	117.3	197	143	485	23
220	300	134	116	110	M18	21	1120	123	189	138	485	27.7
240	320	134	116	110	M18	24	1280	153	198	148	485	29.8
250	330	134	116	110	M18	27	1282	160.2	205	157	485	31
260	340	134	116	110	M18	27	1430	186	205	157	485	32
280	370	156	136	130	M20	24	1650	230	192	145	690	46
300	390	156	136	130	M20	24	1650	245	179	138	690	49
