Heavy Load 222kN.M 120mm Thickness Shaft Locking Devices Keyless Coupling

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z5
Price :	USD 60.00 - 2350.00 / pc
Payment Terms :	T/T
Supply Ability :	500 pcs per month
Delivery Time :	2 - 5 weeks

Add to Cart

Product Details
Company Profile

Heavy Load 222kN.M 120mm Thickness Shaft Locking Devices Keyless Coupling

Z5 Heavy Load Standard Shaft Keyless Power Locking Assembly Device

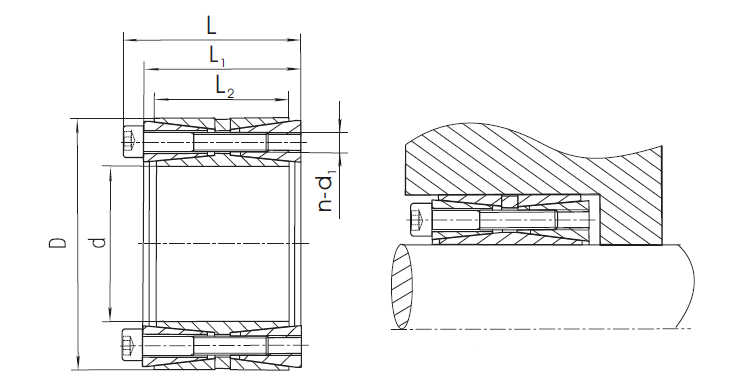

Mounting Example

Fundamental Dimension [mm]					Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	L	L₁	L₂	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
100	145	77	65	60	M12	10	288	14.4	192	132	145	4.1
110	155	77	65	60	M12	10	288	15.8	175	123	145	4.4
120	165	77	65	60	M12	12	346	20.8	192	139	145	4.8
130	180	86	74	68	M12	15	433	28.1	193	139	145	6.5
140	190	86	74	68	M12	18	519	36.3	214	157	145	7
150	200	86	74	68	M12	18	519	39	200	150	145	7.4
160	210	86	74	68	M12	21	606	48.5	219	167	145	7.8
170	225	95	81	75	M14	18	712	60.6	215	162	230	10
180	235	95	81	75	M14	18	712	64.1	203	155	230	10.6
190	250	108	94	88	M14	20	792	75.2	178	135	230	14.3
200	260	108	94	88	M14	24	950	95	203	156	230	15
210	275	120	104	98	M16	18	970	102	187	142	355	17.5
220	285	120	104	98	M16	18	990	109	183	141	355	19.8
240	305	120	104	98	M16	24	1318	158	222	176	355	21.4
250	315	120	104	98	M16	24	1340	167.5	215	170	355	22
260	325	120	104	98	M16	25	1370	173	215	172	355	23
280	355	144	126	120	M18	24	1590	222.5	188	149	485	35.2
300	375	144	126	120	M18	25	1650	248	183	146	485	37.4
320	405	162	142	135	M20	25	2140	344	192	152	690	51.3
340	425	162	142	135	M20	25	2140	365	181	144	690	54.1
360	455	187	165	158	M22	25	2670	480	176	139	930	75.4
380	475	187	165	158	M22	25	2670	508	166	133	930	79
400	495	187	165	158	M22	25	2670	535	158	128	930	82.8
420	515	187	165	158	M22	30	3200	673	181	147	930	86.5
450	555	204	180	172	M24	30	3700	832.5	175	142	1200	112
480	585	204	180	172	M24	32	3950	948	175	143	1200	119
500	605	204	180	172	M24	32	3950	988	168	139	1200	123
530	640	227	200	190	M27	30	4320	1145	157	130	1600	151
560	670	227	200	190	M27	30	4320	1210	148	124	1600	160
600	710	227	200	190	M27	32	4610	1380	147	124	1600	170
