40kN Axial Force 26mm Thickness Keyless Taper Lock Bushings

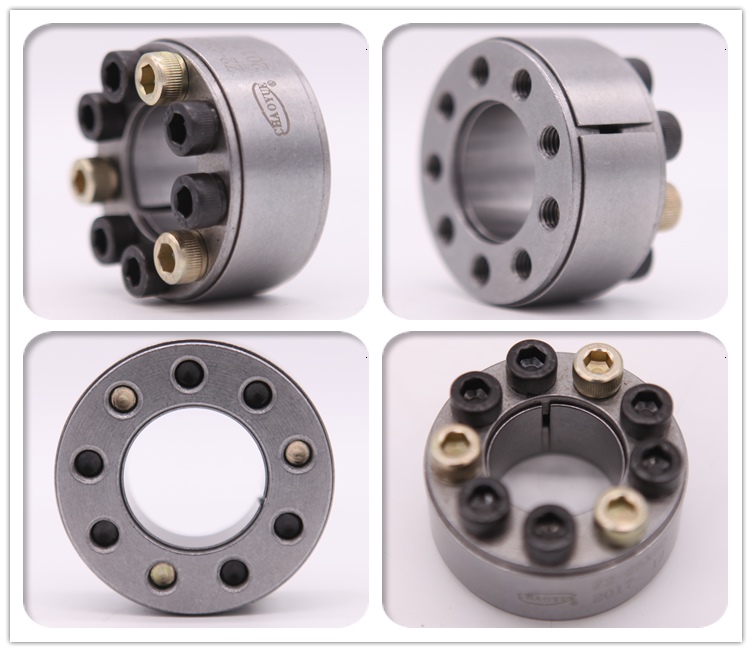

Z2 Standard Keyless Locking Assembly Power Lock Device

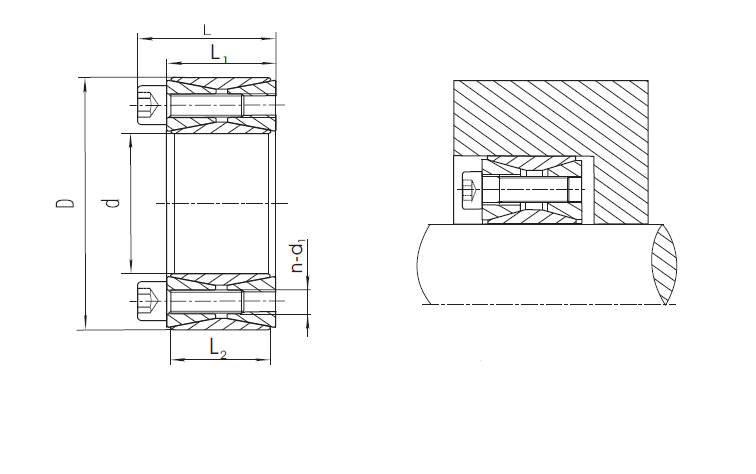

Mounting Example

Fundamental Dimension [mm]					Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	L	L₁	L₂	d₁	n	Axial Force [kN]	Toruqe [kN.m]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
20	47	26	20	17	M6	8	27	0.27	210	90	14	0.24
22	47	26	20	17	M6	8	27	0.3	195	90	14	0.23
25	50	26	20	17	M6	9	30	0.38	190	95	14	0.25
28	55	26	20	17	M6	10	33	0.47	185	95	14	0.3
30	55	26	20	17	M6	10	33	0.5	175	95	14	0.29
35	60	26	20	17	M6	12	40	0.7	180	105	14	0.32
38	63	26	20	17	M6	14	46	0.88	185	105	14	0.33
40	65	26	20	17	M6	14	46	0.92	180	110	14	0.34
42	72	32	24	20	M8	12	65	1.36	200	117	35	0.48
45	75	32	24	20	M8	12	72	1.62	210	125	35	0.57
50	80	32	24	20	M8	12	71	1.77	190	115	35	0.6
55	85	32	24	20	M8	14	83	2.27	200	130	35	0.63
60	90	32	24	20	M8	14	83	2.47	180	120	35	0.69
65	95	32	24	20	M8	16	93	3.04	190	130	35	0.73
70	110	38	28	24	M10	14	132	4.6	210	130	70	1.26
75	115	38	28	24	M10	14	131	4.9	195	125	70	1.33
80	120	38	28	24	M10	14	131	5.2	180	120	70	1.4
85	125	38	28	24	M10	16	148	6.3	195	130	70	1.49
90	130	38	28	24	M10	16	147	6.6	180	125	70	1.53
95	135	38	28	24	M10	18	167	7.9	195	135	70	1.62
100	145	45	33	29	M12	14	192	9.6	195	135	125	2.01
105	150	45	33	29	M12	14	190	9.98	185	130	125	2.1
110	155	45	33	29	M12	14	191	10.5	180	125	125	2.15
120	165	45	33	29	M12	16	218	13.1	185	135	125	2.35
125	170	45	33	29	M12	18	220	13.78	180	130	125	2.95
130	180	50	38	34	M12	20	272	17.6	165	120	125	3.51
140	190	50	38	34	M12	22	298	20.9	165	125	125	3.85
150	200	50	38	34	M12	24	324	24.2	170	125	125	4.07
160	210	50	38	34	M12	26	350	28	170	130	125	4.3
170	225	58	44	38	M14	22	386	32.8	160	120	190	5.78
180	235	58	44	38	M14	24	420	37.8	165	125	190	6.05
190	250	66	52	46	M14	28	490	46.5	150	115	190	8.25
200	260	66	52	46	M14	30	525	52.5	150	115	190	8.65
210	275	72	56	50	M16	24	599	62.89	151	115	295	10.1
220	285	72	56	50	M16	26	620	68	150	115	295	11.22
240	305	72	56	50	M16	30	715	85.5	160	125	295	12.2
250	315	72	56	50	M16	32	768	96	162	125	295	12.7
260	325	72	56	50	M16	34	800	104	165	130	295	13.2
280	355	84	66	60	M18	32	915	128	145	115	405	19.2
300	375	84	66	60	M18	36	1020	153	150	120	405	20.5
320	405	98	78	72	M20	36	1310	210	150	120	580	29.6
340	425	98	78	72	M20	36	1310	224	145	115	580	31.1
360	455	114	90	84	M22	34	1630	294	145	115	780	42.2
380	475	114	90	84	M22	36	1620	308	135	110	780	44
400	495	114	90	84	M22	36	1610	322	130	105	780	46
420	515	114	90	84	M22	40	1780	374	135	110	780	50
450	555	126	102	96	M24	40	2050	461.25	124	100	1000	65
480	585	126	102	96	M24	42	2160	518.4	124	100	1000	71
500	605	126	102	96	M24	44	2240	560	123	100	1000	72.6
530	640	126	102	96	M24	45	2330	617	121	100	1000	83.6
560	670	126	102	96	M24	48	2440	680	120	100	1000	85
600	710	126	102	96	M24	50	2580	775	118	100	1000	91
630	740	126	102	96	M24	52	2680	844	117	105	1000	94
670	780	126	102	96	M24	56	2820	944	116	100	1000	101
710	820	126	102	96	M24	60	2970	1054	115	100	1000	106
750	860	126	102	96	M24	62	3130	1173	115	100	1000	112
800	910	126	102	96	M24	66	3260	1300	112	100	1000	118
850	960	126	102	96	M24	70	3500	1487	113	100	1000	125
900	1010	126	102	96	M24	75	3680	1650	112	100	1000	132
950	1060	126	102	96	M24	80	3870	1838	112	100	1000	139
1000	1110	126	102	96	M24	82	4000	2000	110	100	1000	146
