Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

Ask Lasest Price
Brand Name :	CHAOYUE
Model Number :	Z14
Price :	USD 3.00 - 20.00 / pc
Payment Terms :	T/T
Supply Ability :	5000 pcs per month
Delivery Time :	1 - 3 weeks

Add to Cart

Product Details
Company Profile

Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

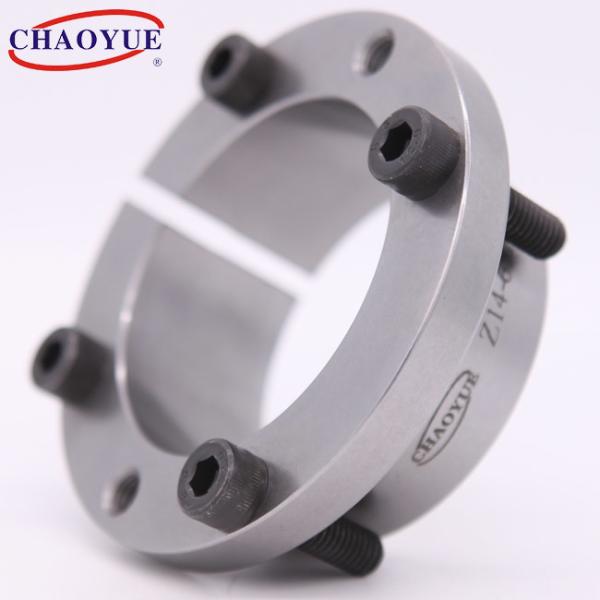

Z14 Spring Loaded Clamp Mechanism Keyless Locking Ring

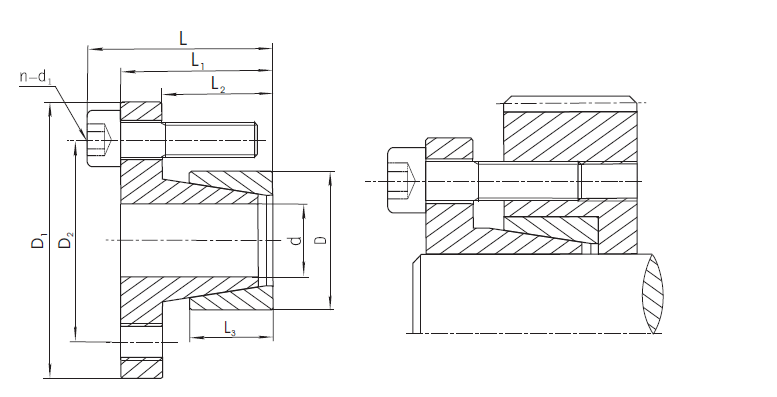

Mounting Example

Fundamental Dimension [mm]								Bolt		Rated Load		Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
d	D	D₁	D₂	L	L₁	L₂	L₃	d₁	n	Torque [N·m]	Axial Force [kN]	Pressure on Shaft [N / mm²]	Pressure on Hub [N / mm²]	Torque of Tighten Bolt [N.m]	Weight [kg]
14	25	42	33	30	26	20	16	M4	4	64	9.2	109	61	2.9	0.091
16	25	42	33	30	26	20	16	M4	4	74	9.2	95	61	2.9	0.082
18	25	42	33	30	26	20	16	M4	4	82	9.2	85	61	2.9	0.072
19	25	42	33	30	26	20	16	M4	4	87	9.2	80	61	2.9	0.068
20	30	50	39	31	26	20	16	M5	4	150	15	124	82	6	0.113
22	30	50	39	31	26	20	16	M5	4	165	15	113	82	6	0.11
24	30	50	39	31	26	20	16	M5	4	180	15	104	82	6	0.088
25	36	55	45	31	26	20	16	M5	4	187	15	100	69	6	0.144
28	36	55	45	31	26	20	16	M5	4	210	15	89	69	6	0.121
30	36	55	45	31	26	20	16	M5	4	225	15	83	69	6	0.105
32	42	62	51	33	28	20	16	M5	4	240	15	77	59	6	0.2
35	42	62	51	33	28	20	16	M5	4	260	15	71	59	6	0.173
36	42	62	51	33	28	20	16	M5	4	270	15	69	59	6	0.162
38	44	66	54	34	28	20	16	M6	4	400	21.2	93	80	10	0.182
40	48	70	58	34	28	20	16	M6	4	425	21.2	88	73	10	0.223
42	48	70	58	34	28	20	16	M6	4	446	21.2	83	73	10	0.191
45	55	82	67	43	35	25	20	M8	4	875	38.9	115	94	25	0.4
48	55	82	67	43	35	25	20	M8	4	935	38.9	107	94	25	0.35
50	62	89	74	43	35	25	20	M8	4	974	38.9	103	83	25	0.5
55	62	89	74	43	35	25	20	M8	4	1070	38.9	94	83	25	0.41
60	72	99	84	43	35	25	20	M8	4	1165	38.9	86	71	25	0.58
65	72	99	84	43	35	25	20	M8	4	1265	38.9	79	71	25	0.46
