800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment

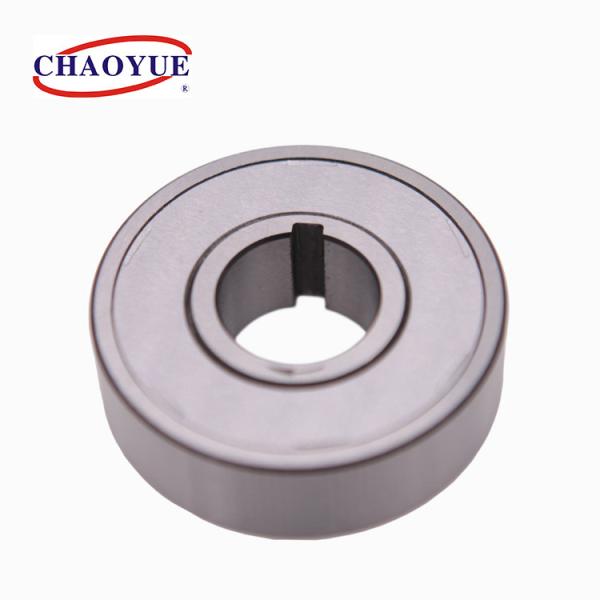

CK-C Sprag One Way overrunning Clutch Freewheel For Mechanical Equipment

Type CK-C is a sprag type freewheel non-bearing supported. Nominal dia. direction diameter is a standard ball bearings dimension. Bearing are required to support axial and radial loads. Units are delivered grease lubricated.

A standard arrangment is to install this type besides a bearing with the same housing diameter tolerance as mounting example. The inner race is keyed to the shaft. The outer race has n6 tolerance to give a tight fit in k7 housing. But the housing must be strong enough.

This series extensive used in machinery system of packing, printing, papermaking, weaving chemical, medical, food and so on.

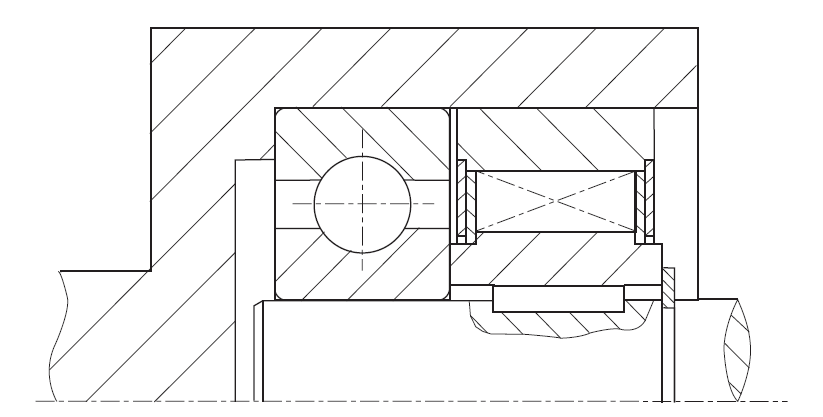

Mounting Example

Type	Nominal Torque [N.m]	Overrunning Limiting Speed [r / min]		Dimension in Coutour [mm]					Bearing [GB/T276]	Weight
		Overrunning Limiting Speed [r / min]		Outer Race Size		Inner Race Size
		Inner Race	Outer Race	D [n6]	B	d [H7]	C	b_n x t_n
CK-C2052	50	1100	420	52	15	20	15	4 x 1.8	6304	0.2
CK-C2562	80	1000	400	62	15	25	15	4 x 1.8	6305	0.21
CK-C3062	95	1000	400	62	15	30	15	4 x 1.8	6206	0.25
CK-C3072	132	1000	400	72	16	30	16	8 x 2.3	6306	0.41
CK-C3572	132	1000	400	72	15	35	15	5 x 2.3	6207	0.37
CK-C4080	300	1000	400	80	22	40	22	6 x 2.8	6208	0.48
CK-C4090	695	800	300	90	30	40	30	6 x 2.8	6308	0.49
CK-C4285	358	800	300	85	22	42	22	10 x 3.3	6209	0.51
CK-C4585	358	800	300	85	22	45	22	10 x 3.3	6209	0.52
CK-C5090	430	800	300	90	22	50	22	10 x 3.3	6210	0.56
CK-C55100	480	700	250	100	22	55	22	10 x 3.3	6211	0.72
CK-C60110	530	600	200	110	22	60	22	10 x 3.3	6212	0.85
CK-C65120	600	600	200	120	22	62	22	12 x 3.3	6213	0.95
CK-C70125	712	600	200	125	22	70	22	12 x 3.3	6214	1.07
CK-C80140	1184	500	150	140	26	80	26	12 x 3.3	6216	1.57
CK-C90160	1560	500	150	160	26	90	26	12 x 3.3	6218	2.09
